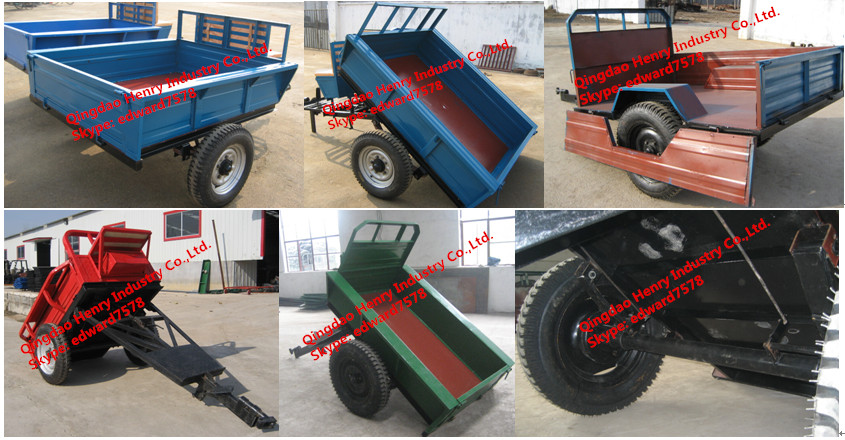

1T walking tractor trailer
This trailer can load 1000kg and the empty weight is 190kg, it can matched the tractor power 7-18hp
SPECIFICATION | |
Carriage Size. mm | 2000*1000*330 |
Loading.KG | 1000KG |
Structure weight.KG | 190KG |
Tyre size | 600-16/650-16 |
Tyre quantity.Pcs | 2PCS |
Brake form | By foot |
Matched power.HP | 7-18HP |
Unload form: | No |
The form of trailer circuitry path : | Connected with 7 core spiral cable swift connector |
Postpositive tailight, auto-circuitry of the whole trailer. | |
Form of tipping: | back tipping,three way tipping. Provide with fuel tank. |
Form of trailer air path connection: | Connected with spiral tube |
Form of trailer oil pipe: | Nipple. |
Surface treatment of trailer: | Pickling phosphating |
Surface spray coating: | antirusting paint, finishing paint . |
The process of trailer welding: | carbon dioxide MIG welding. |
40 ' HQ | 100sets |
|
|
