| Ask Lasest Price | |
| Brand Name : | BOTA |
| Certification : | ISO9001, CE |
| Model Number : | T-0.5 |
| Price : | Pls send me email |
| Delivery Time : | 20days |
| Payment Terms : | TT OR L/C at sight |
| Supply Ability : | 20000sets/month |

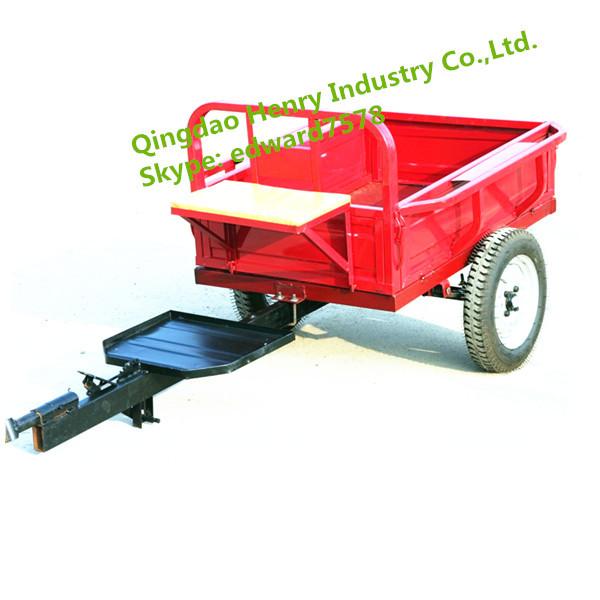

0.5T TRAILER FOR TILLER
This trailer can load 500kg and the empty weight is 120kg, it can matched the tractor power 5-12HP
SPECIFICATION | |
Carriage Size. mm | 1400*800*340 |
Overall dimension. mm | 2670*960*1140mm |
Loading.KG | 500KG |
Structure weight.KG | 130KG |
Tyre size | 4.00-12/500-12 |
Tyre quantity.Pcs | 2PCS |
Brake form | By foot |
Matched power.HP | 5-12HP |
Unload form: | No |
The form of trailer circuitry path : | Connected with 7 core spiral cable swift connector |
Postpositive tailight, auto-circuitry of the whole trailer. | |
Form of tipping: | back tipping,three way tipping. Provide with fuel tank. |
Form of trailer air path connection: | Connected with spiral tube |
Form of trailer oil pipe: | Nipple. |
Surface treatment of trailer: | Pickling phosphating |
Surface spray coating: | antirusting paint, finishing paint . |
The process of trailer welding: | carbon dioxide MIG welding. |
40 ' HQ | 150sets |
|
|
